plain couplings

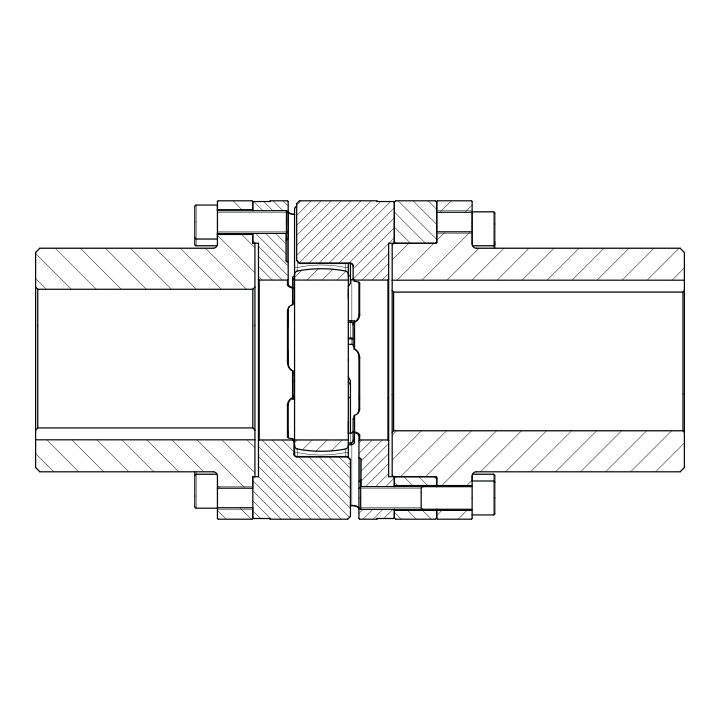

AFC-A - Removable jaw coupling
Claw type coupling design utilizing an elastomer element for excellent vibration damping and misalignment accommodation. The key feature of the AFC coupling is the ability to replace the flexible element without axial displacement of the motor.
- Nominal Torque capacity up to 19,200 Nm
- Minimal maintenance requirements
- Superior shock load absorption
- In-situ flexible element replacement

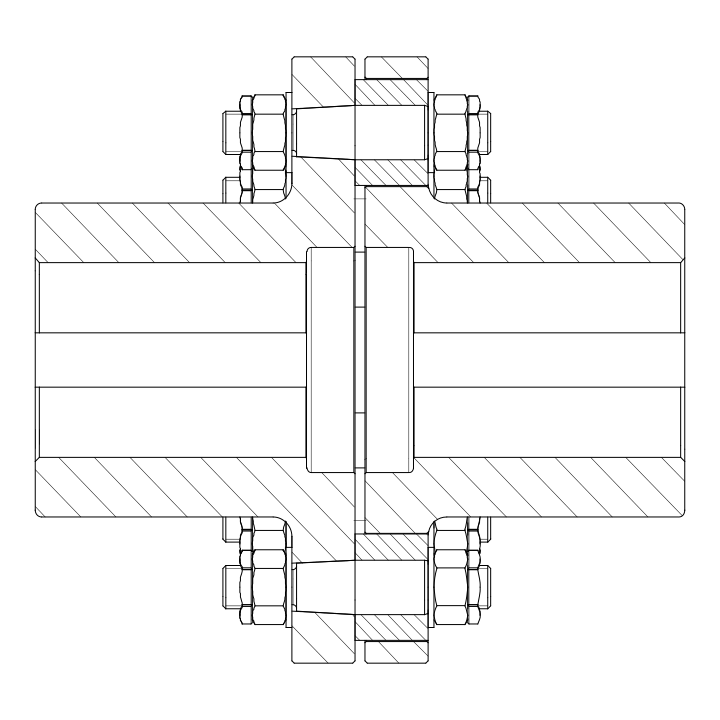

APC-A - Pin coupling
Robust pin-type coupling design offering high shock load capacity and reliable performance in harsh operating environments. Easy to inspect and maintain, making it ideal for demanding industrial applications.
- Nominal Torque capacity up to 6,500 Nm
- Cone ring style flexible bushes
- Suitable for dusty or high-vibration environments
- Simple inspection and service procedures

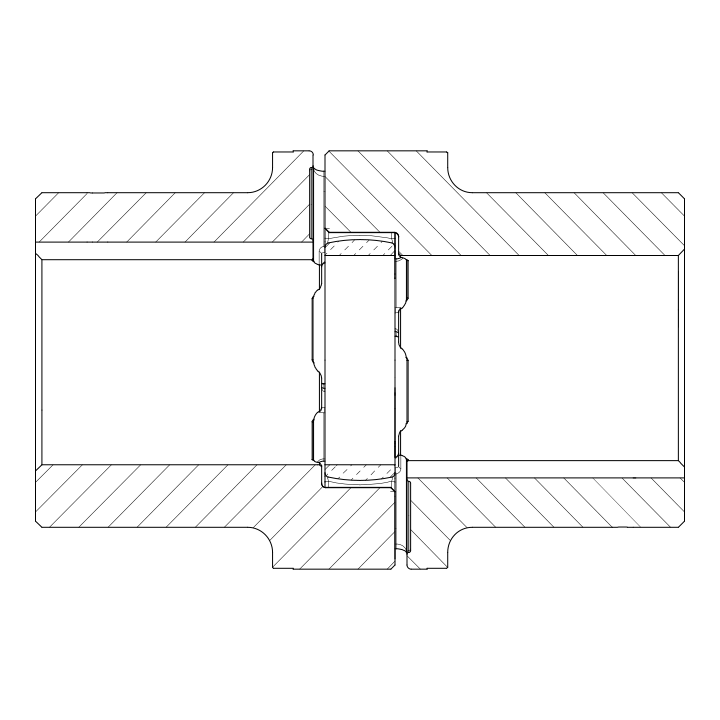

ALC-A - Fixed jaw coupling
Alternative flexible coupling design specified for unique application requirements where standard AFC or APC configurations cannot be accommodated.
- Nominal Torque capacity up to 10,000 Nm
- Simple, 3 piece design
Additional Services
Precision Bore & Keyway
Available locally or ex-works Germany
Dynamic Balancing
with full report and certificate
Custom Engineering
bespoke solutions available on request
